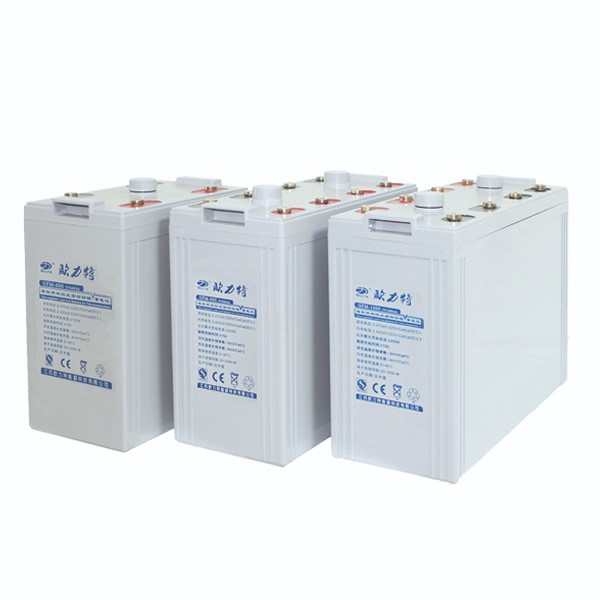

JGFM Series

Energy storage battery

Technical parameters:

Rated voltage: 2V

Rated capacity: 100Ah to 3000Ah
The maximum discharge current: 30 | 10 A(3 min)
Maximum charging current: ≤0.25C10
Self-discharge: <3% per month
Operating temperature range: -20℃~45℃
Floating charging voltage: 2.23V~2.25V
Floating charge temperature compensation: -3mV/Cell ° C
Average charging voltage: 2.35V~2.40V
Equalized charging temperature compensation: -4mV/Cell ° C
  • Certificate

Product features:

● Adopt precise flameproof safety valve, foreign advanced coating technology and tight assembly technology

● Design life is more than 12 years, spare electrolyte design, terminal using stainless steel bolts, high strength, no deformation
● The grid adopts diamond bar, radioactive design, reduce the battery resistance, greatly improve the battery charging receiving capacity
● Special multiple lead calcium alloy, using nano colloidal raw materials imported from Germany, patent colloidal electrolyte.

● Shell adopts ABS engineering plastic, corrosion resistance, impact resistance, deep discharge recovery ability

Application field:

Communication base station photovoltaic, wind power station, wireless, microwave relay station, Marine backup power supply,
● Remote unmanned area base station, substation, large UPS, EPS, machine room power supply;

Model Nominal Voltage(V) Capacity(Ah) Weight(kg) Length(mm) Width(mm) Height(mm) Terminal
JGFM 100-2 2 100 6.2 172 102 222 M8
JGFM 200-2
2 200 13.4 173 111 340 M8
JGFM 300-2
2 300 18.2 171 151 340 M8
JGFM 400-2
2 400 25.5 211 176 340 M8
JGFM 500-2 2 500 29.5 241 172 340 M8
JGFM 600-2
2 600 37 301 175 340 M8
JGFM 800-2
2 800 51.0 410 176 340 M8
JGFM 1000-2
2 1000 58.5 470 172 341 M8
JGFM 1500-2
2 1500 97.0 401 351 378 M10
JGFM 2000-2
2 2000 145.5 399 212 802 M8
JGFM 3000-2
2 3000 182.0 712 355 383 M10
