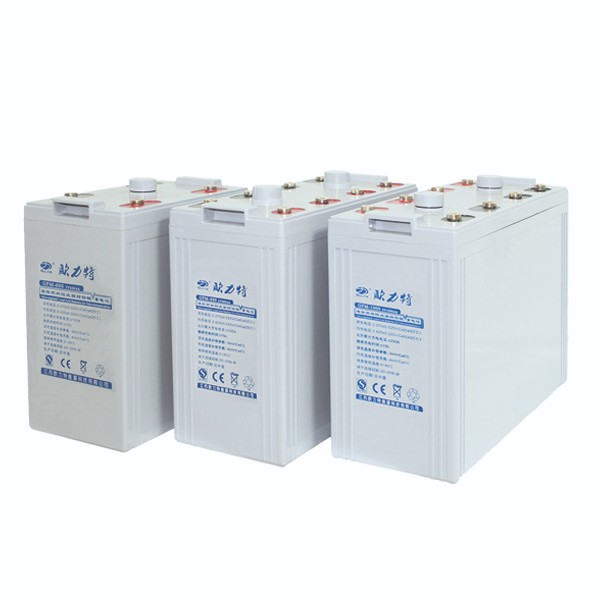

Lead-acid battery

Technical parameters:

Rated voltage: 12V

Rated capacity: 100Ah to 3000Ah

The maximum discharge current: 30 | 10 A(3 min)
Maximum charging current: ≤0.25C10
Self-discharge: <3% per month
Operating temperature range: -20℃~45℃
Floating charging voltage: 2.23V~2.25V
Floating charge temperature compensation: -3mV/Cell ° C
Average charging voltage: 2.35V~2.4V
Equalized charging temperature compensation: -4mV/Cell ° C
  • Product Detail
Product features:
● Adopt precise flameproof safety valve;
● Foreign advanced coating technology and tight assembly technology;
● Design life is 15 years;
● Stainless steel bolts are used for wiring terminals, with high strength and no deformation;

● Patent corrosion resistant alloy, thick plate design;

Application areas:
Communication base station photovoltaic, wind power station, wireless, microwave relay station, Marine backup power supply,
● Remote unmanned area base station, substation, large UPS, EPS, machine room power supply;

Model Nominal Voltage(V) Capacity(Ah) Weight(kg) Length(mm) Width(mm) Height(mm) Terminal
GFM 100-2 2 100 6.2 172 102 222 M8
GFM 200-2 2 200 13.0 173 111 340 M8
GFM 300-2 2 300 18.0 171 151 340 M8
GFM 400-2 2 400 25.0 211 176 340 M8
GFM 500-2 2 500 29.5 241 172 340 M8
GFM 600-2 2 600 36.5 301 175 340 M8
GFM 800-2 2 800 50.0 410 176 340 M8
GFM 1000-2 2 1000 58.0 470 172 341 M8
GFM 1500-2 2 1500 92.0 401 351 378 M10
GFM 2000-2 2 2000 123.0 491 351 383 M10
GFM 3000-2 2 3000 181.0 712 355 383 M10
