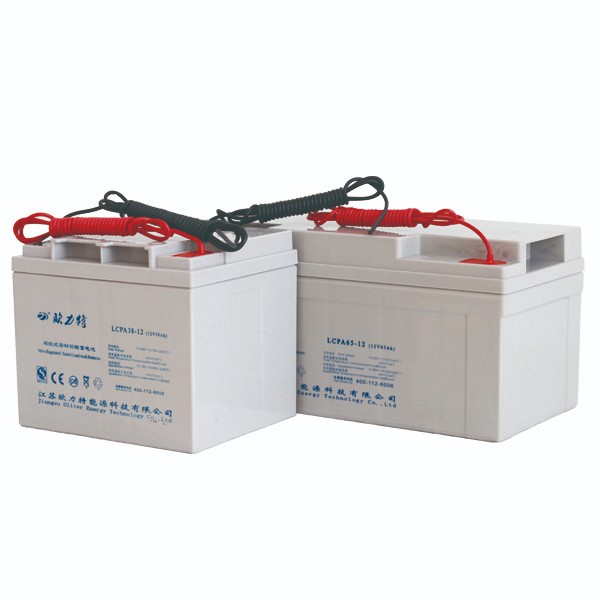

LCPA Series

Lead-acid batteries for energy storage

Technical parameters:

Rated voltage: 12V

Rated capacity: 7Ah to 250Ah
The maximum discharge current: 30 | 10 A(3 min)
Maximum charging current: ≤0.25C10
Self-discharge: < 3% per month
Operating temperature range: -20℃~45℃
Floating charging voltage: 13.4V~13.7V
Floating charge temperature compensation: -3mV/Cell ° C
Average charging voltage: 14.1V~14.4V
Equalized charging temperature compensation: -4mV/Cell ° C
  • Product Detail
Product features:
● Long service life, reasonable use, design life up to 7 years;
● Positive plate grid, thickened, corrosion resistant, long floating charge life;
● The use of calcium base six element alloy, has a scientific formula, from the source to ensure the quality of the battery;
● The grid adopts diamond bar, radioactive design, reduce the battery resistance, greatly improve the battery charging receiving capacity.
● Positive and negative electrode coating technology;
● Modified ultrafine glass fiber diaphragm, excellent resilience, low internal resistance, high porosity, gas recombination rate of 99%;
● Shell adopts ABS engineering plastic, corrosion resistant, impact resistant;
● The ordinary rubber cap valve pressure control is reasonable, to prevent the battery water loss due to salinization, greatly improve the life of the battery;
● 4225AB sealant, with strong viscosity, corrosion resistance and earthquake resistance;

● Deep discharge recovery ability.

Application areas:
● Solar street lamp, energy storage station, solar complementary system, signal lamp, plateau without electricity area;
● Remote uninhabited area base station, substation, large UPS, EPS, power supply for the machine room.

Model Nominal Voltage(V) Capacity(Ah) Weight(kg) Length(mm) Width(mm) Height(mm) Terminal
LCPA 7-12 12 7 2.3 151 65 101 M5
LCPA 12-12 12 12 3.8 151 99 103 M5
LCPA 17-12 12 17 5.5 181 76 165 M5
LCPA 24-12 12 24 7.2 176 166 126 M5
LCPA 33-12 12 33 9.5 195 130 160 M5
LCPA 38-12 12 38 11.8 196 165 175 M6
LCPA 50-12 12 50 15.7 227 138 212 M6
LCPA 65-12 12 65 19.2 350 166 174 M6
LCPA 70-12 12 70 21.0 260 168 212 M6
LCPA 80-12 12 80 24.0 331 176 220 M8
LCPA 100-12 12 100 28.8 331 176 220 M8
LCPA 120-12 12 120 33.8 406 174 235 M8
LCPA 150-12 12 150 41.5 483 170 240 M8
LCPA 200-12 12 200 56.7 522 240 228 M8
LCPA 250-12 12 250 70.5 522 268 228

M8
