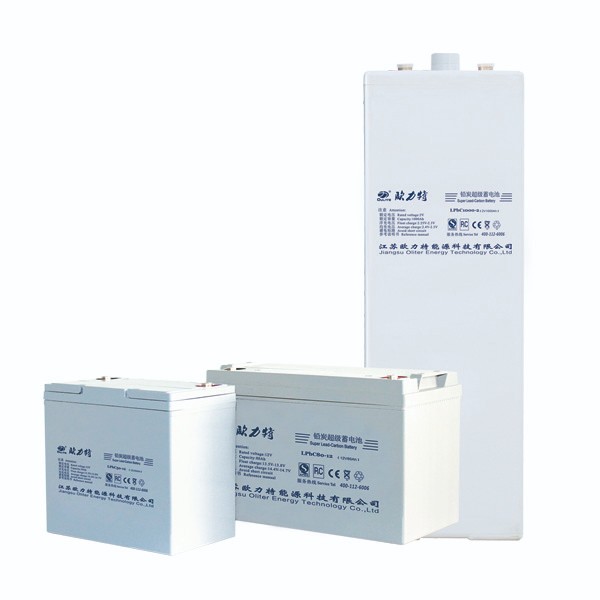

LPbC Series

Lead carbon battery

Product features:

● High carbon content of positive and negative electrode special lead paste formula material, sulfuric acid reduction, low temperature discharge performance is good, extended cycle life;

● Positive and negative plate grid adopts new material and mechanism design, strong corrosion resistance, small contact resistance with active material, good deep discharge performance, charging acceptance ability and fast charging ability;
● Maintenance-free, no acid fog escape during use, no need to water;
● High current discharge performance, low temperature discharge performance is good;
● The battery can work in a higher environment with the added type conforming to the plastic shell;
  • Product Detail

Product advantage:

● Deep cycle discharge does not damage, 70%DOD can reach 4000 times;

● The grid adopts special six-element alloy to increase corrosion resistance;
● And paste using low density sulfuric acid, and add 4BS seeds, increase battery life;
● Fast charging within three hours, fully charged in 6.5 hours;

● Service life is 3~4 times of ordinary lead-acid battery, greatly reduce environmental pollution;

Application field:

Transportation: hybrid electric vehicle, low speed short distance pure electric vehicle, vehicle low temperature start, golf cart, patrol car. Electric boat;
New energy: energy storage for solar power generation, wind power generation, ocean (tidal) and other fields;
Smart grid: intelligent micro-grid for power generation and energy storage, automatic energy storage for peak-to-trough storage, distributed power generation and energy storage;
Military applications: vehicle hybrid electric transmission system, laser weapons, combat tank start-up, military communication vehicles, ships;

Model Nominal Voltage(V) Capacity(Ah) Weight(kg) Length(mm) Width(mm) Height(mm) Terminal
LPbC100-12
12

100

40 483 170 240 M8
LPbC150-12 12 150 61 522 240 219 M8
LPbC200-12 12 200 72 522 268 219 M8
LPbC250-12 12 250 74 522 268 219 M8
LPbC600-2 2 600 46 145 206 678 M8
LPbC800-2 2 800 60 191
210 678 M8
LPbC1000-2 2 1000 80 233 210 678 M8
LPbC1500-2 2 1500 107 275 210 827 M8
LPbC2000-2 2 2000 145 399 212 802 M8
LPbC3000-2 2 3000 220 576 212 802 M8
